Ski jump - flow choking (6)

Ski jump - flow choking (6)

Description

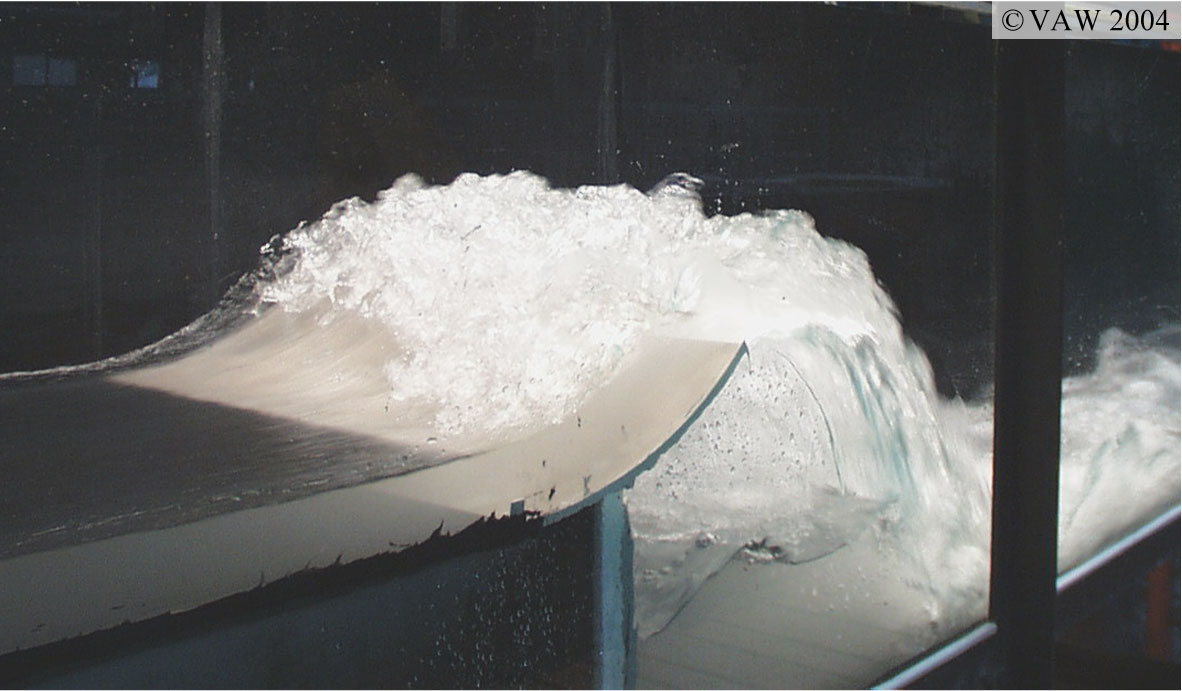

This photo shows a ski jump investigation with circular-shaped flip buckets in a hydraulic model at VAW. Flow choking occurs if the approach flow Froude number is below a certain threshold and a hydraulic jump develops on the flip bucket. Here the flip bucket radius is 0.40 m and the deflection angle 40¬∞. The approach water depth is 0.05 m and the choking Froude number 2.9. The jet impinges close to the takeoff section and may develop a scour hole undermining its foundation.

Date
2004

Copyright
Laboratory of Hydraulics, Hydrology and Glaciology (VAW), Swiss Federal Institute of Technology Zurich, Switzerland

Keywords
Energy dissipation Flip bucket Hydraulic experimentation Jet trajectory Ski jump Spillway
